2/12/2017 - Smaller Footswitch for the Jet City 22H

While trying to reorganize my pedalboard, I realized that the stock footswitch that came with my Jet City 22H was just too large.  I wanted to make something smaller that could do the same job.  So, I made this:

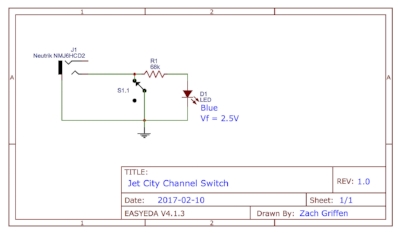

I traced the schematic of the original switch, and drew out the following schematic:

I replaced the stock 68kohm resistor with a 33kohm resistor, because I wanted the indicator light to be a bit brighter.

The new switch works perfectly, and it has cleared up quite a bit of space on my pedalboard.  This is a great project for anyone interested in doing simple electronics.
